Filter Actions (Linking) and Highlight Actions (Brushing) in Tableau

Today, we will talk about using Filter and Highlight Actions in Tableau.  Depending on your location, you may heard these referred to as Linking and Brushing.  I primarily use these on Dashboards; but they can be used on individual worksheets as well.  I will use the Superstore Sales sample data in Tableau.

Step 1:
  • Create your dashboard.
Dashboard without Actions
Step 2:
  • Select Dashboard -> Actions -> Add Action -> Filter.
  • For the "Source Sheet", select "Dashboard", and make sure that "Profit by State" is the only box checked.
  • For the "Target Sheet", select "Dashboard", and make sure that "Sales by Sub-Category" is the only box checked.
  • Choose "Run Action on: Select."
  • Choose "Clearing the selection will: Show all values."
  • Choose "Target Fields: Selected Fields"
  • Then choose "Add Filter -> State"
Dashboard with Filter Action
Now, when I click on Montana, the graph in the bottom-right is filtered to include only values in Montana.  You can easily undo the filter by clicking an empty space on the map (This is why we chose "Clearing the selection will: Show all values").

Step 3:
  • Select Dashboard -> Actions -> Add Action -> Highlight.
  • For the "Source Sheet", select "Dashboard", and make sure that "Profit by State" is the only box checked.
  • For the "Target Sheet", select "Dashboard", and make sure that "Profit Ratio vs. Time to Ship" is the only box checked.
  • Choose "Run Action on: Hover."
  • Choose "Target Fields: Selected Fields", and make sure that "State" is the only box checked.

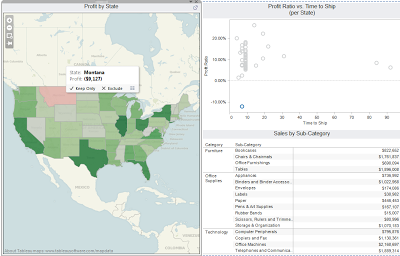

Dashboard with Highlight Action
Now, when I hover over Montana, the circle corresponding to Montana is highlighted on the scatterplot.  There's so much more that can be done with Actions, you can combine highlight and filter actions, you can use filter actions to take you to a completely different dashboard, you can even use a URL action to take you a website.  Experiment with this and you will experience a whole new world within Tableau.  Thanks for Reading.
