## Monday, December 28, 2015

### Level of Detail Calculations in Tableau Part 5: LoDs as Dimensions

Today, we're going to talk about using LoDs as Dimensions in Tableau.  Up until now, we've only been using LoDs as measures on our charts.  However, they can also be used as dimensions if you're careful.  One important caveat to note is that only FIXED LoDs can be used as dimensions because a dimension can not depend on what is already in the chart.  This is why Table Calculations are always measures.  Let's start by looking at ways to classify customers.  What if we wanted to classify customers by the number of unprofitable items they've bought?

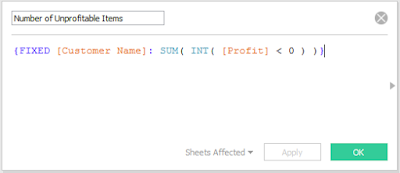

 Number of Unprofitable Items
The inner expression [Profit] < 0 flags each row with a TRUE/FALSE if it's an unprofitable item.  Then, we change those to 1/0 values and sum them up by customer.  If we drag this onto the chart as a dimension, it actually gets pushed down to the row-level of our underlying data, as if it were a dimension in the data set.  This allows us to apply measures on top of it.

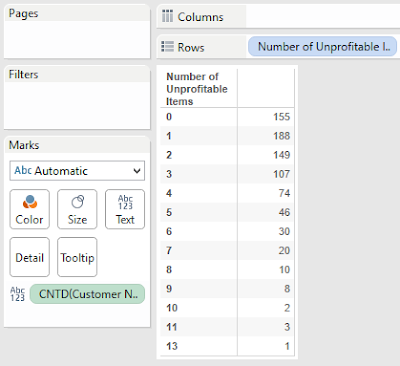

 Number of Customers by Number of Unprofitable Items
You can even view the underlying data to confirm that the calculation works.

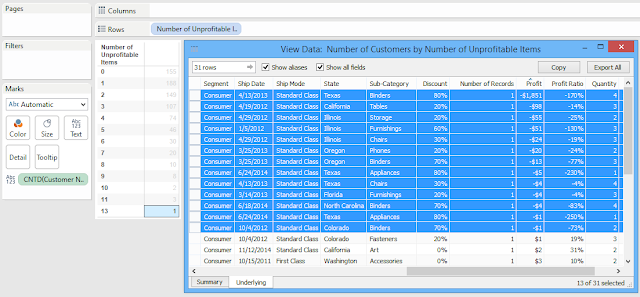

 Number of Customers by Number of Unprofitable Items (with Underlying Data)
Unfortunately, the Number of Unprofitable Items field will not appear in the underlying data because it's calculated at runtime.  Alas, this does give you some way to double check your calculations.

Since this field is now a dimension, we can even filter on it.

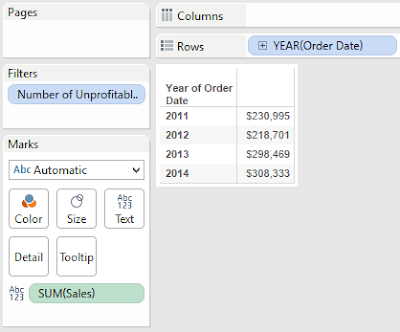

 Sales by Year for Customers with at Least 3 Unprofitable Items
We do warn you to be careful with these types of situations, you may end up with incorrect calculations.  For instance, when you have year on the chart, does the LoD calculate for each year or does it calculate once, filter the underlying data source, and make a chart based on the filtered data source?  Our intuition says the latter.  Let's test it.

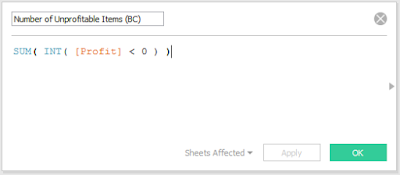

 Number of Unprofitable Items (BC)

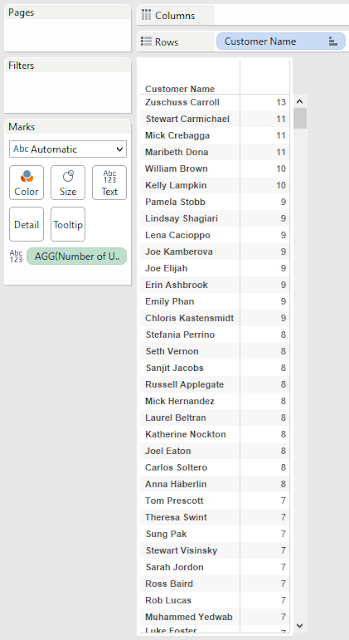

 Number of Unprofitable Items by Customer
We can see that Zuschuss Carroll is the only customer with 13 unprofitable items.  Let's see what his/her Sales by Year are.

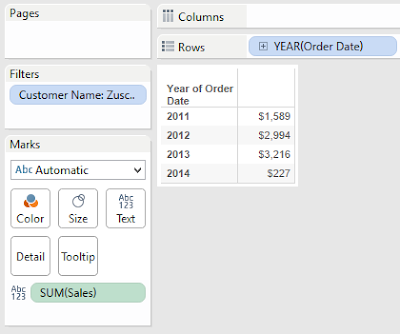

 Sales by Year (Zuschuss Caroll)
His/her Sales for 2011 is \$1,589.  Next, let's filter our first Sales by Year chart to show "exactly 13" Unprofitable Items instead of "at least 3".
 Sales by Year for Customers with 13 Unprofitable Items
This is exactly what we saw when we filtered on Zuschuss Caroll directly.  This is amazing news.  We now know that filtering by an LoD does not take into account what's on the chart.  What about the other side?  When the LoD is placed on a chart, does it take into account the filters?

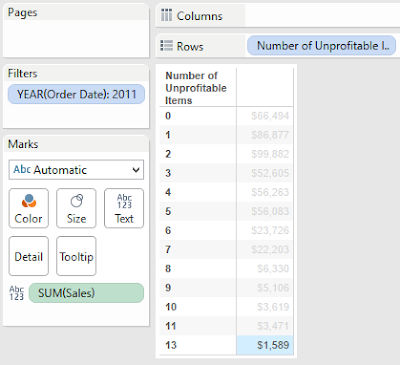

 Sales by Number of Unprofitable Items for 2011
We see that \$1,589 is the same number we saw when we filtered on Zuschuss Caroll.  This isn't especially surprising.  In Part 2, we established that FIXED LoDs always compute before traditional filters.  This brings up another interesting question.  What happens if we add the Year filter to the Context?

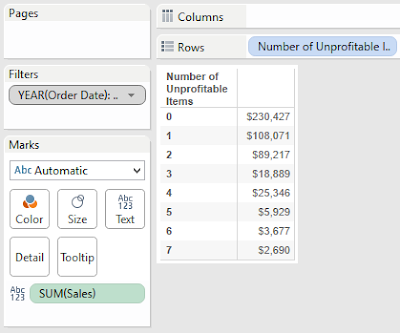

 Sales by Number of Unprofitable Items for 2011 (Context)
There is no longer a row for 13.  This signals to us that the filter is taking place BEFORE the LoD.  It's a great sign to the simplicity of LoDs that the reality matches our expectations.  However, let's take it one step further.  What happens if you add an LoD filter to Context?  Does an infinite loop within Tableau rip a hole in the universe?  Let's find out.
 Unprofitable Items by Year and Customer
The first numeric column you see is the LoD.  As we now know, it doesn't care if Year is also in the chart, it calculates across all years.  After that, we see the Basic Calculation version calculated for each year, followed by the total.  For now, this total matches the LoD.  Let's see what happens when we filter out rows with an LoD equal to 0.

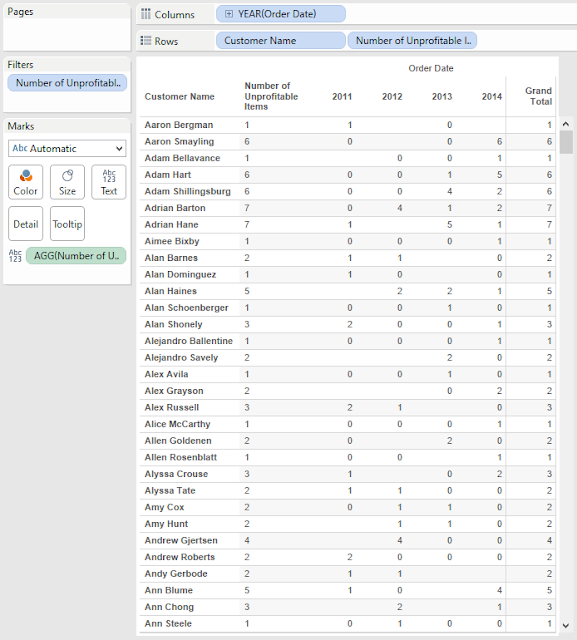

 Unprofitable Items by Year and Customer (Traditional Filter)
It filters out all rows with an LoD value of 0, as we expected.  Now, what happens if we add this filter to Context?

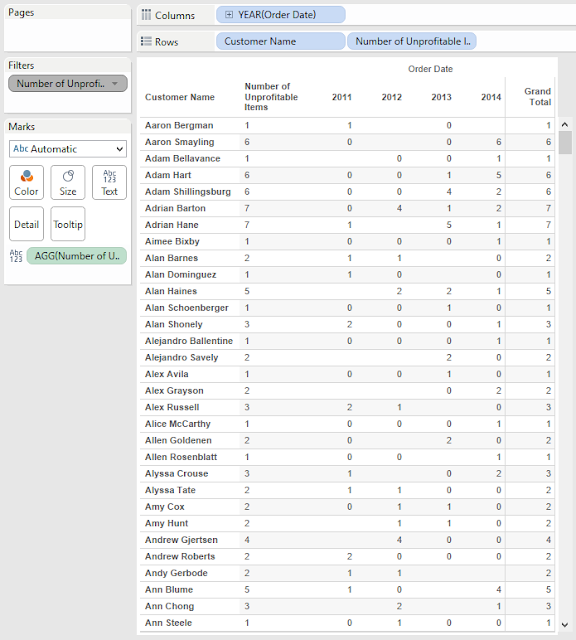

 Unprofitable Items by Year and Customer (Context Filter)
Nothing happens.  The filter acts the same whether it is context or traditional.  The real question is "How does this context filter interact with other filters?"  An LoD should always be calculated after Context Filters and before Traditional Filters.  This would lead us to believe that the following order takes place:

1) Non-LoD Context Filters are computed
2) FIXED LoDs are computed
3) Context is recomputed using LoD Context filter

This seems somewhat inefficient.  Calculating the Context can be quite cumbersome depending on your data.  Calculating it twice would make it even worse.  Let's see if this is the case.

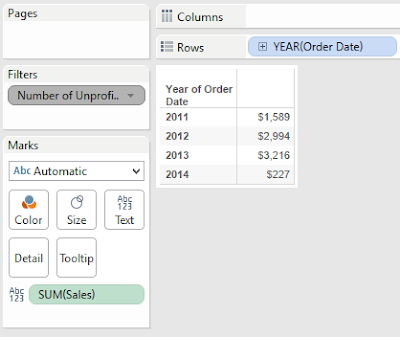

 Sales by Year for Customers with 13 Unprofitable Items (Context)
We've seen this chart before.  Now, what will happen if we add a traditional filter for 2011.  The LoD filter should calculate first, then the Year filter.  This means that the only row in the output should be 2011 with a value of \$1,589.

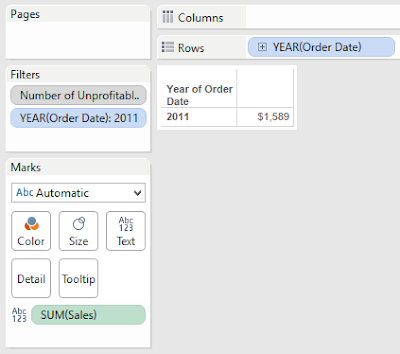

 Sales for Customers with 13 Unprofitable Items in 2011 (Traditional)
So far, so good.  Now, let's add the Year filter to Context.  If our above hunch was correct, the chart should go blank.  This would indicate that the Year filter is being taken into account before the LoD is calculated, thereby requiring the Context to be build twice.

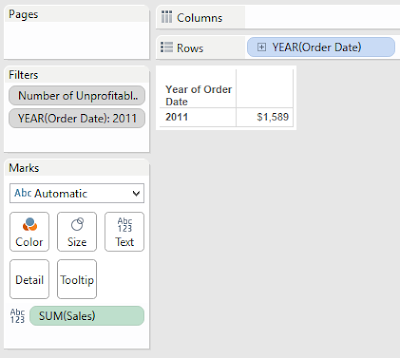

 Sales for Customers with 13 Unprofitable Items in 2011 (Context) v2
Interestingly enough, we were wrong.  The Year context filter was not calculated before the LoD.  This is an interesting find.  For one, it means that Tableau's not as inefficient as we expected it to be.  Second, it means that we found an exception to the "Context before FIXED" rule. In fact, it seems that ALL context filters, regardless of origin, are calculated before other FIXED LoDs.  This brings up another interesting question.  Is there any way to have a FIXED Context Filter affected by other filters?  It doesn't seem like it.  Alas, maybe someone will leave a comment with an idea.

That's all we're going to discuss about this today.  We learned a tremendous amount about LoDs and hope you did too.  Thanks for reading.  We hope you found this informative.

The workbook for this post can be found here.

llewellyn.wb@gmail.com

## Monday, December 14, 2015

### Level of Detail Calculations in Tableau Part 4: How do they work?

Today, we're going to talk about using how Level of Detail Calculations work inside Tableau.  This is an extremely complex topic that could easily span its own series.  Alas, we'll try to touch on the basics.  Let's start with a simple LoD.  For this example, we'll use the Total Sub-Category Sales.
 Total Sub-Category Sales
Judging by the syntax, this LoD calculates the SUM( [Sales] ) at the Sub-Category level.  What does it do with this information?  First, it creates an underlying table for this calculation.
 Total Sub-Category Sales (Underlying Table)
We don't get to see this table, but it's still there.  Since this is a FIXED calculation, it also takes into account any data source or context filters that may be applied.  In this case, we don't have any of those.  So, what happens next?  This depends on the granularity of the chart that you're asking Tableau for.  Let's start by decreasing the granularity (less rows in the chart) by choosing to aggregate by Category.  Depending on your industry, this may also be referred to as going "Up the Hierarchy" or "Rolling Up".
 Sales and Total Sub-Category Sales by Category
As you can see, when you attempt to roll up this aggregation, it takes the underlying Sub-Category Sales table, and sums it up to the category level.  Here's a rudimentary illustration.
 Aggregation
Generally, summing a sum is not the most useful operation.  You can achieve the same result without the headache by just summing the values all the way through.  However, this does become more useful when you want to see things like the max of the sums, or the sum of the maxes.

Now, let's move on to the next level, Disaggregating.  Disaggregating is the exact opposite of Aggregation because you are increasing the granularity of the chart.  This may also be known as "Rolling Down", "Drilling Down", or "Down the Hierarchy".  To illustrate this, we'll use Manufacturer as our dimension.
 Sales and Total Category Sales by Sub-Category and Manufacturer
As you can see, the Total Sub-Category Sales are the same for every manufacturer within the Sub-Category.  Why is this?  Well, this chart has the Sub-Category dimension in it already.  Therefore, Tableau simply takes our underlying table of Sales by Sub-Category, and appends it on to each row of the chart.
 Appending
These two processes are pretty simple.  But, what if the dimension in your chart is completely unrelated to Sub-Category?  Let's find out by using Segment.
 Sales and Total Sub-Category Sales by Segment
As you can see, the Total Sub-Category Sales is equal to the total sales (minus some rounding error).  Since Segment and Sub-Category are "unrelated", the sum of the Total Sub-Category Sales is the total sales.  However, what does it mean to be unrelated?
 Total Sub-Category Sales by Segment and Sub-Category
Turns out that every combination of Segment and Sub-Category exists in our context.  Therefore, the sums will always be the same.  Some of you might be saying "But my data has holes in it!"  Holes are an extremely common part of data analysis and should always be considered.  So, what happens if we swap out Segment for State?
 Total Sub-Category Sales by State and Sub-Category
As you can see, this cross-section has holes in it.  So, what do you think happens when you remove Sub-Category from the canvas?
 Total Sub-Category Sales by State
You can see that most of the states don't add up to the Total Sales.  This is caused by the holes.  Here's a small illustration for you.
 Incomplete Aggregation
That's pretty much all the basics for LoDs.  We've seen that when you use an LoD, Tableau creates an underlying table(s) and either appends or aggregates them to you chart.  Don't worry though.  There's plenty more amazing ways that Tableau uses LoDs.  Hopefully, we've laid the groundwork for many LoDs to come.  Thanks for reading.  We hope you found this informative.

The workbook for this post can be found here.
