Power BI/PowerPivot: What is Filter Context?

Today, we're going to talk about filter context in DAX.  This feature is incredibly simple to understand, yet incredibly powerful.  Before we get started, let's look at a simple data model.

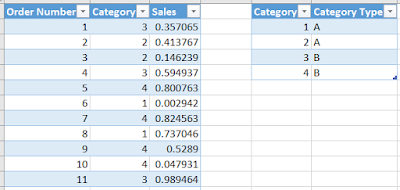

Sales Data
Data Model
As you can see, we have a table of sales data associated to categories, as well as a category table giving us additional information about each category.  Now, let's look at a simple chart using Sales[Category] (Category from the Sales table) and Sales[Sales].
Sales by Category (from Sales)
When you create this chart, you are looking at Filter Context.  Let's look at a single measure value in the table.
Sales by Category (Filter Context)
When we look at this one value (11.76), we have to think about what filters are applied to it.  Since we have a very simple pivot table, and no external slicers or filter, the only filter applied to this value is "Sales[Category] = 1".  Similarly, we can say that the filter context for row 2 is "Sales[Category] = 2".  Let's add another layer to the pivot table.
Sales by Category and Order Number (from Sales)
Here, we have a value with a filter context of "Sales[Category] = 1 AND Sales[Order Number] = 6".

EDIT:  The above filter context should be "Sales[Category] = 1 AND Sales[Order Number] = 8".  Thanks to Benjamin for pointing this out.

 Let's flip this pivot around to see if the numbers change.
Sales by Category and Order Number (Pivotted)
Even though the chart looks different, the filter context remains exactly the same.  Therefore, the value doesn't change.  Let's take this one step further and look at Sales by Categories[Category].
Sales by Category (from Categories)
These are the same exact values we saw earlier.  This is because we have a relationship defined between the two tables.  So, we can say that the filter context is "Categories[Category] = 1", which is the same as "Sales[Category] = 1".  It's very important to note that Filter Context can move across relationships.  What would happen if we tried to go the other way?  Can we apply a filter on the Sales table and have it affect a measure from the Categories table?  First, we need to create a measure in the Categories table.
Now, we can place this in a Pivot table with Order Number, which is DOWN the hierarchy from Categories.  If the filter context is unused, then Categories should return 4 for every row because there are 4 total rows in the Categories table.  Let's see what happens.
Categories by Order Number
Interestingly, we can use filter context in this direction as well.  The one caveat here is that the measure is no longer additive.  Notice how the "Total" row shows 4 categories?  This is the correct number of Total Categories, but the sum of the Categories column far exceeds 4.  Let's try something else.  Let's add another row to the Categories table for Category 5, even though there are no rows in the Sales table to link to it.
Categories (New)
Now, what will happen if we place categories on a pivot table with Sales[Category]?
Categories by Category (from Sales)
Obviously, we would expect the Categories measure to return 1 for each category.  However, the pivot doesn't show Category 5 because we're using Category from the Sales table, which has an incomplete list of Categories.  This is one of many reasons why it's generally better to use slicers from your lookup table if possible.

Now that we've seen how filter context is applied via simple charts, let's add a page-level filter to the mix as well.
Sales by Order Number (with Filters) (No Selection)
Since we have not selected anything in the filters, the filter context for the highlighted value is "Order Number = 1".  Let's make a selection.
Sales by Order Number (with Filters) (Category Type = A)
Now, the filter context is "Order Number = 2 AND Category Type = A".  Since Filter Context is the combination of ALL filters applied to the measure, we can get the same result by using visual interactions instead of filters.  (FYI, a slicer in Power BI is technically a measure-less chart.  This means that a slicer interacts with a chart in the same way that two charts interact with each other.)
Sales by Order Number (with Interaction) (Category Type = A)
The final type of filter we want to talk about are defined directly in the measure definition.  The CALCULATE() function can be used to calculate a measure, using a set of pre-defined filters.  For instance, we can create a measure called "Sales for Category 1" that gives us the total sales for only Category 1.
Sales for Category 1
Sales for Category 1 (Chart)
By looking back at the earlier charts in this post, you can see that this value is correctly showing the total sales for Category 1.

We hope this post helped you on the way to understanding how filter context works and how you can exploit it to solve some of your problems.  We've barely scratched the surface here and there's plenty more to talk about.  Thanks for reading.  We hope you found this informative.

Brad Llewellyn
BI Engineer
Valorem Consulting

Monday, June 6, 2016

Power BI/PowerPivot: Using Slicers to Choose Which Measure to Display

Today, we're going to talk about how to use Slicers to choose which measure you want to display in your Table or Chart.  This is probably one of the coolest and easiest features to implement, yet it completely opens your reporting world.  It easily allows the user to select which measure they want to display, without you having to build multiple tabs or charts.  Let's get to it!

We'll start off by building a very simple data model.
Sales Table
We start with a table of orders.  Each order has a few slicer columns (Date, Month, Category) and a couple of measure columns (Sales, Profit).  We can easily pull this into Power BI Desktop and build some simple charts.
Sales Charts
Now, this is great if we only want to show Sales.  However, what if we want to allow the user to select whether they want to see "Total Sales", "Average Sales", or "Total Profit"?  We can achieve this with a little slight-of-hand.
Create Table
Let's start by creating a table with a single column called Measure.  Remember that slicers/filters can only be creating by using existing columns in your data.  When you select a value in the slicer, it filters the underlying table, as well as any tables further down the chain of relationships.  In our model, we don't have any relationships.  Therefore, when we select a value in the filter, nothing happens.
Unconnected Filter
Now, we need to create a measure that changes based on the value of the filter.  This is where the SWITCH() function comes in handy.  The SWITCH() function is nothing more than a simple way to write long IF-ELSE chains.  In this scenario, we want to check whether [Measure] is "Total Sales", "Average Sales", or "Total Profit" and return the appropriate measure.
Invalid Switch
We get an error.  Since there is no relationship between these two tables, Power BI doesn't know how to choose which of the three values in the [Measure] field to use.  There are a couple of ways to resolve this, and they all depend on how you want the measure to act when multiple values are selected in the filter.  The simplest method is simply to wrap Table2[Measure] in a FIRSTNONBLANK() function.  FIRSTNONBLANK() functions very similarly to MIN().  However, MIN() only accepts numeric data, where FIRSTNONBLANK() can accept any data type.
Selected Measure (FirstNonBlank)
Now, all we have to do is rebuild our charts, replacing [Sales] with [Selected Measure (FirstNonBlank)].
Dynamic Measure (FirstNonBlank) (Average Sales)
Since all of the values are between 7 and 8, we know that are looking at Average Sales.  This is what we would expect given that we have chosen Average Sales in our slicer.  However, what would happen if we selected all values in the slicer?
Dynamic Measure (FirstNonBlank) (No Selection)
We see that the charts still display Average Sales.  This is because Average Sales is the first non-blank value in the Measures column (text fields are sorted alphabetically).  What would the charts look like if we selected the other measures?
Dynamic Measure (FirstNonBlank) (Total Profit)
Dynamic Measure (FirstNonBlank) (Total Sales)
We can see that this methodology works fine when an individual measure is selected, but works somewhat awkwardly when more than one is.  Depending on which media you are using to house your reports (Power Pivot via Excel, Tabular via Excel, Power BI Online, Power BI Desktop, etc.), you may have the option of not allowing the user to select more than option in the slicer.  This would be our preferred option.  However, Power BI Desktop doesn't seem to have that option.  So, let's shoot for the next best thing.
Selected Measure (HasOneValue)
The HASONEVALUE() function will return TRUE if the field contains only one value after all filters are applied and FALSE otherwise.  Therefore, wrapping our original Switch inside of an IF() statement with a HASONEVALUE() condition will allow us to control what happens when the user doesn't select a single value.  In this case, we want the charts to go blank.
Dynamic Measure (HasOneValue) (No Selection)
Dynamic Measure (HasOneValue) (Average Sales)
We hope this enlightened you to the possibilities for Dynamic Measure Switching in DAX.  The possibilities of this technique are nearly endless.  Any type of information that can be conveyed via measures, can be altered with this technique.  Thanks for reading.  We hope you found this informative.
